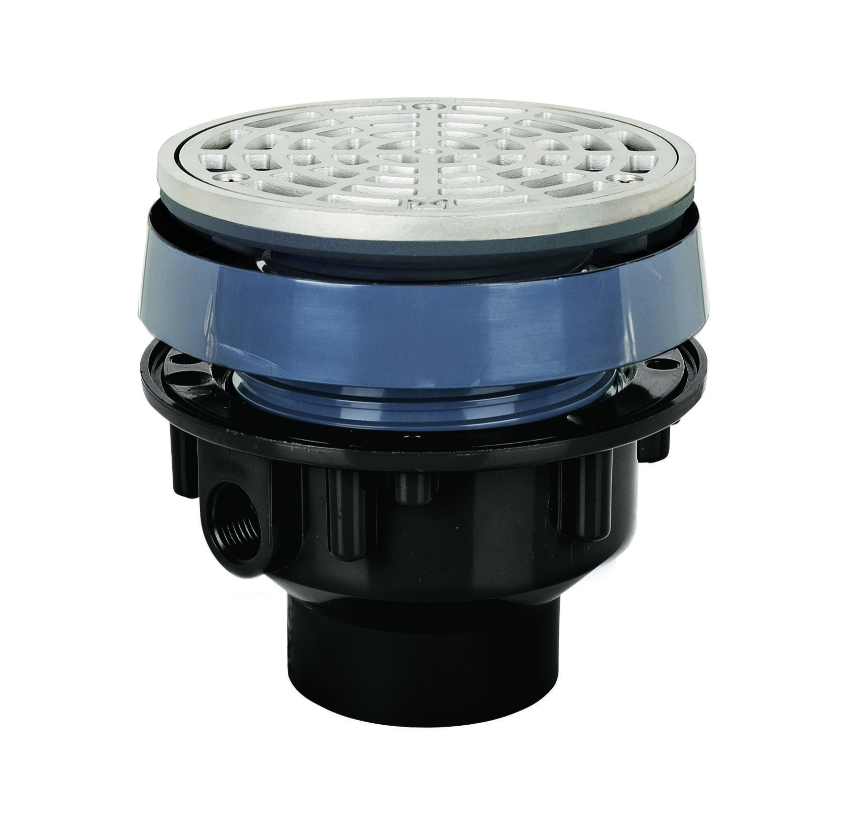

DESCRIPTIONSioux Chief FinishLine™ Floor Drain Complete Assembly, Adjustable, Series: 832, 2 x 3 in Outlet, Hub, ABS Drain, 5-1/2 in Grid

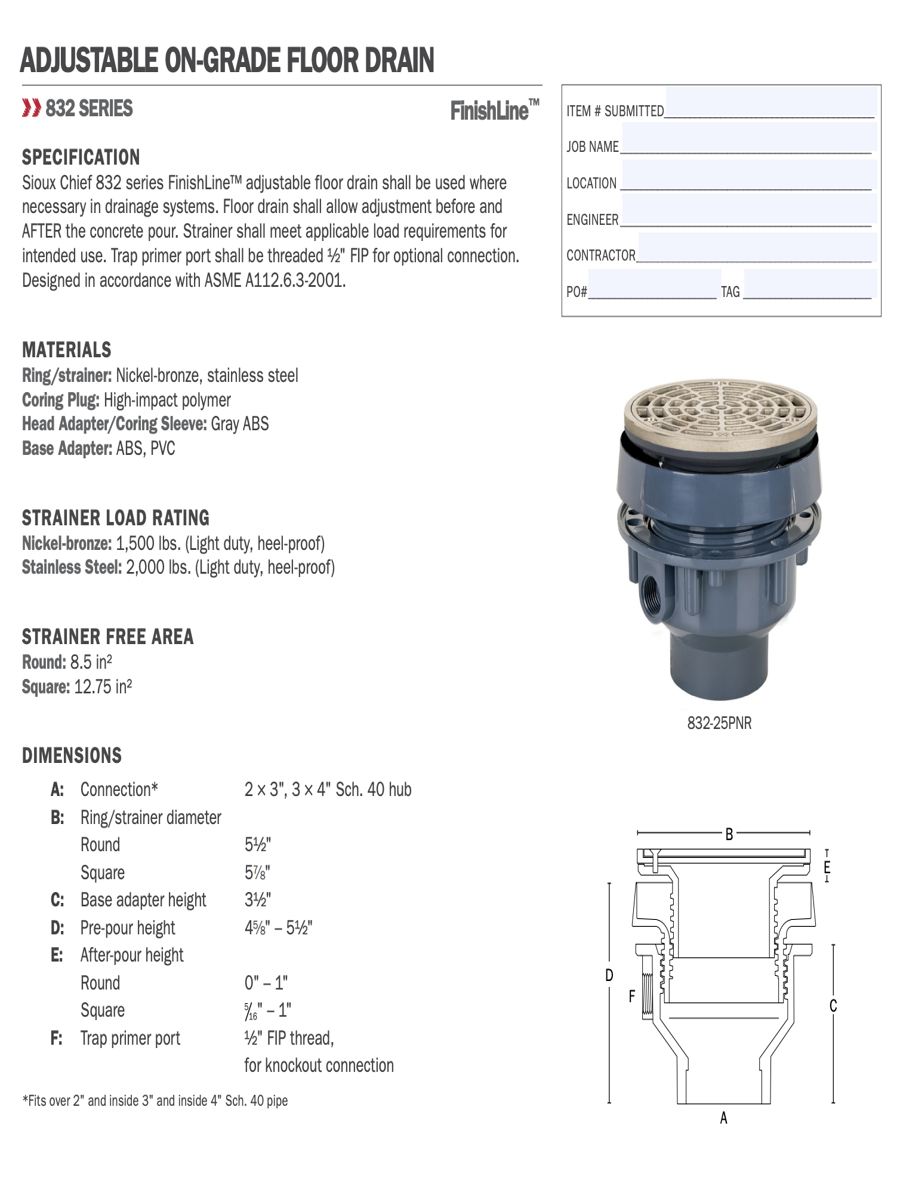

Sioux Chief 832 series FinishLine™ adjustable floor drain shall be used where necessary in drainage systems. Floor drain shall allow adjustment before and after the concrete pour. Strainer shall meet applicable load requirements for intended use. Trap primer port shall be threaded 1/2 in FIP for optional connection. Designed in accordance with ASME A112.6.3-2001.
Adjustable after the pour
ABS/PVC base adapter, ABS coring sleeve and head adapter
Trap primer port 1/2 in FIP thread, for knockout connection
3-1/2 in base adapter height
Sch 40 hub connection
2000 lb load rating for stainless steel (light duty heel proof)
8.5 sq-in round strainer free area
