Water hammer occurs when the flow of moving water is suddenly stopped by a closing valve. This sudden stop results in a tremendous spike of pressure behind the valve which acts like a tiny explosion inside the pipe. This pressure spike reverberates throughout the plumbing system, rattling and shaking pipes, until it is absorbed. Normally, a sufficient pocket of air will absorb such a pressure spike, but if no pocket of air is present, expensive fixtures and appliances within the plumbing system will be damaged as they are left to absorb this pressure spike.
Overview

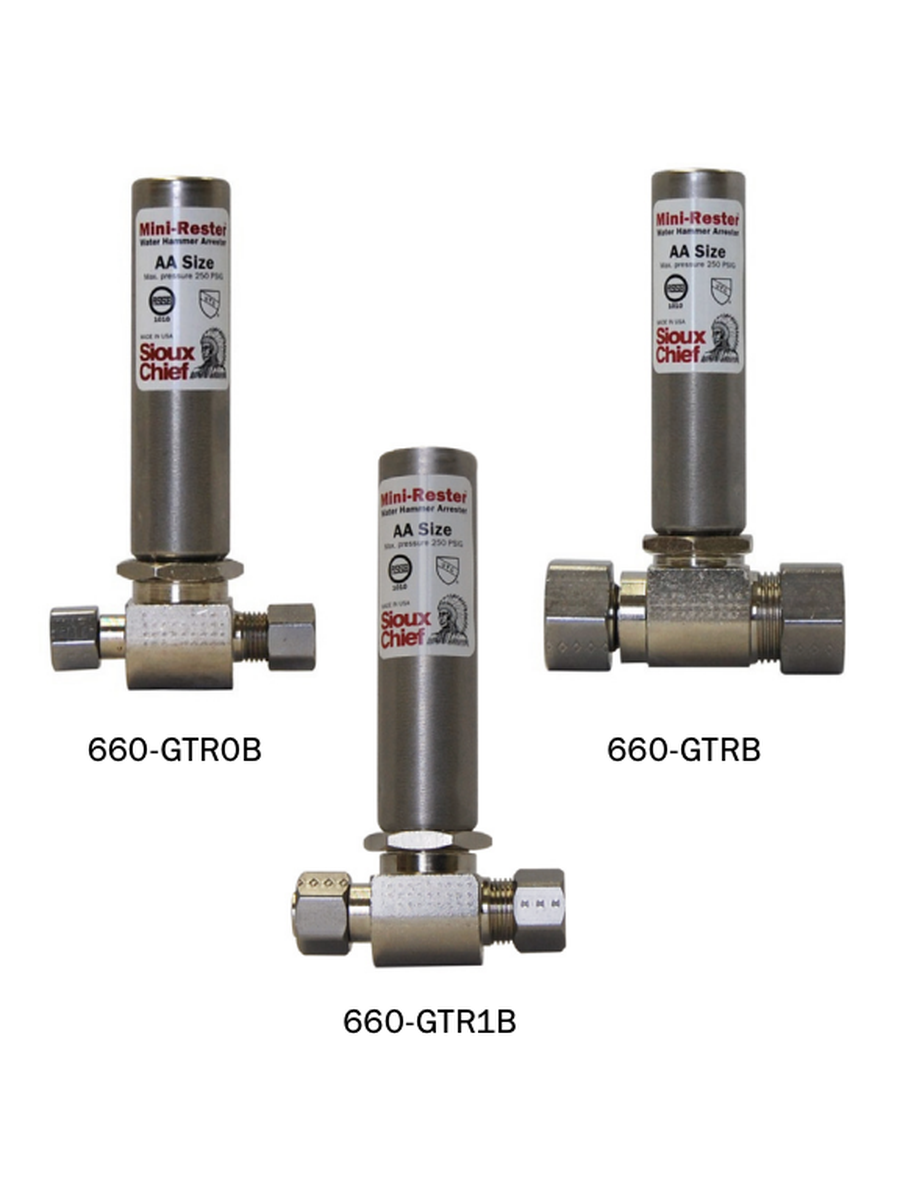

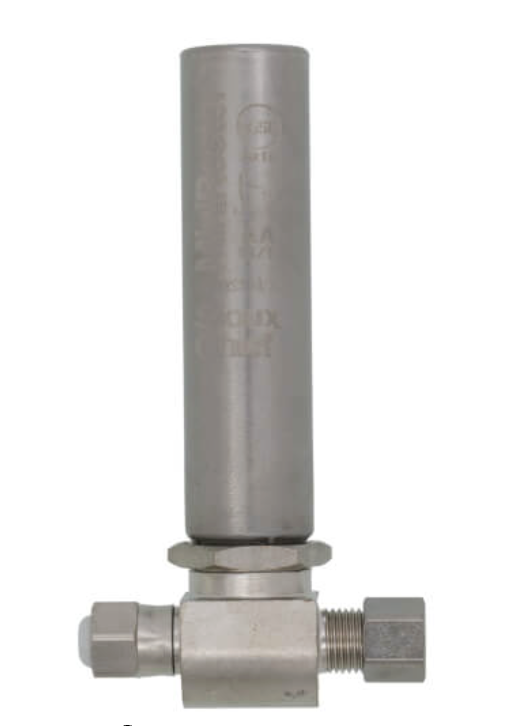

Installs either between stub out and supply stop, or between supply stop and supply tube for faucets, dishwashers, toilets or ice makers
All Mini-Resters are AA size
All Mini-Resters are approved for sealed wall installations with no access panel required
May be installed at any angle
Materials:
Arrester body: 304 stainless steel
Piston: polypropylene with two EPDM o-rings
Tee body: nickel-plated no-lead machined brass
