WATTS LFFBV TC TH 0792513 3/4 THRD BRASS 2 PC FP BALL VLV W/ LEVER HDL & TEST COCK L D FREE

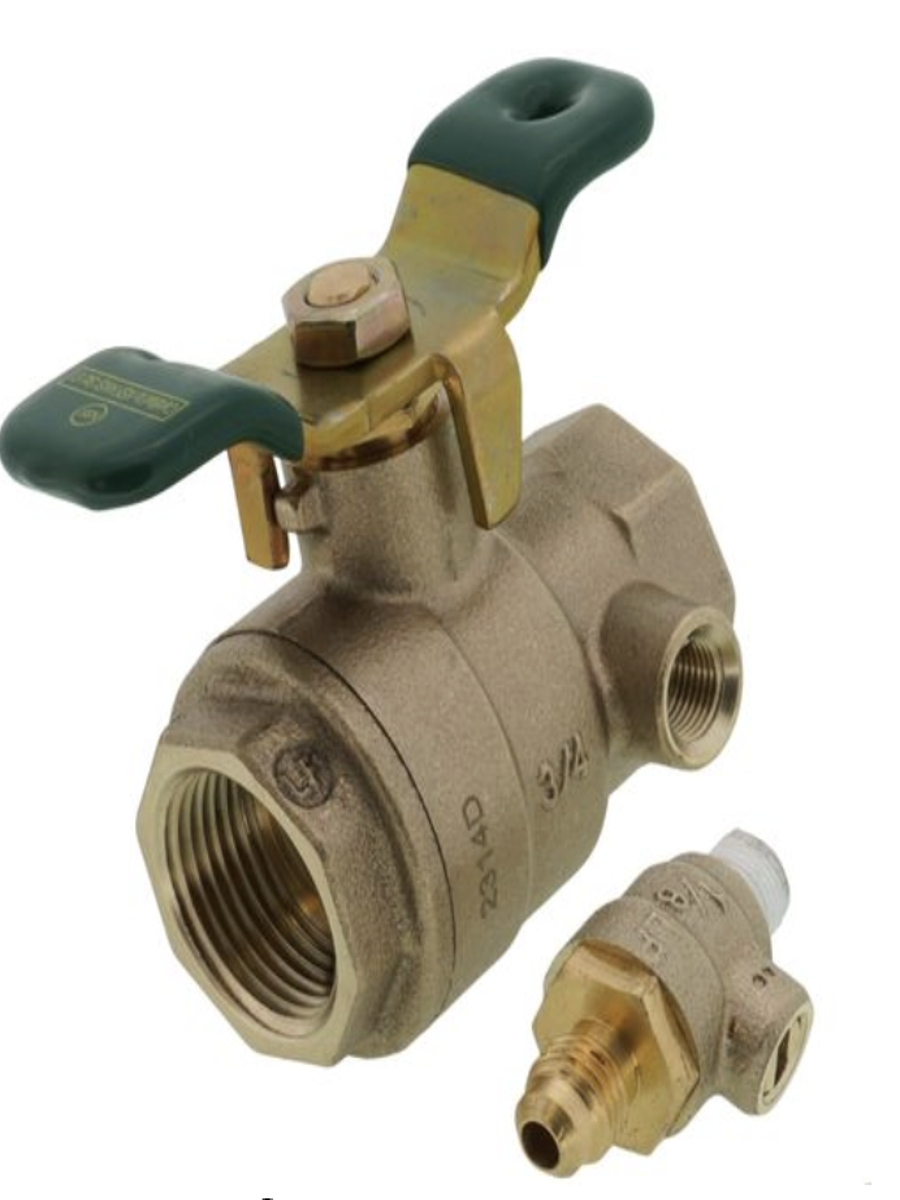

LFFBV-TC-TH 3/4" 2-Piece Full Port Threaded Ball Valve w/ Test Cock & Tee Handle (Lead Free)

This 3/4 inch lead free two-piece, full port, ball valve with female threaded end connections is used in commercial and industrial backflow applications. The valve features bronze body construction, adjustable packing gland, chrome-plated bronze ball, virgin PTFE seats and seals, a bottom loaded blowout proof stem, test cock and a tee handle. Each valve undergoes extensive factory testing before it is shipped, assuring a quality Watts product. The temperature range is 0 to 350 degrees F (-18 to 177 degrees C) at 50 psi (344.7 kPa). The pressure range is 600 psi (41.3 bar) WOG non-shock at 100 degrees F (38 degrees C) and 125 psi (8.6 bar) WSP.

Features

• Excellent for throttling and balancing applications for non-abrasive liquids

• Two-piece construction

• Bronze body construction with chrome-plated brass ball

• Full port for minimal pressure drop

• Material: Bronze

• Control Type: Tee Handle

• Cv Rating: 30 GPM

• Inlet Connection Size: 3/4"

• Inlet Connection Type: Female Threaded

• Outlet Connection Type: Female Threaded

• Operating Torque 150 in-lbs

• Stem Type: Bottom Loaded Blowout Proof

• Valve Style: 2-Piece

• WOG Rating: 600 PIS
