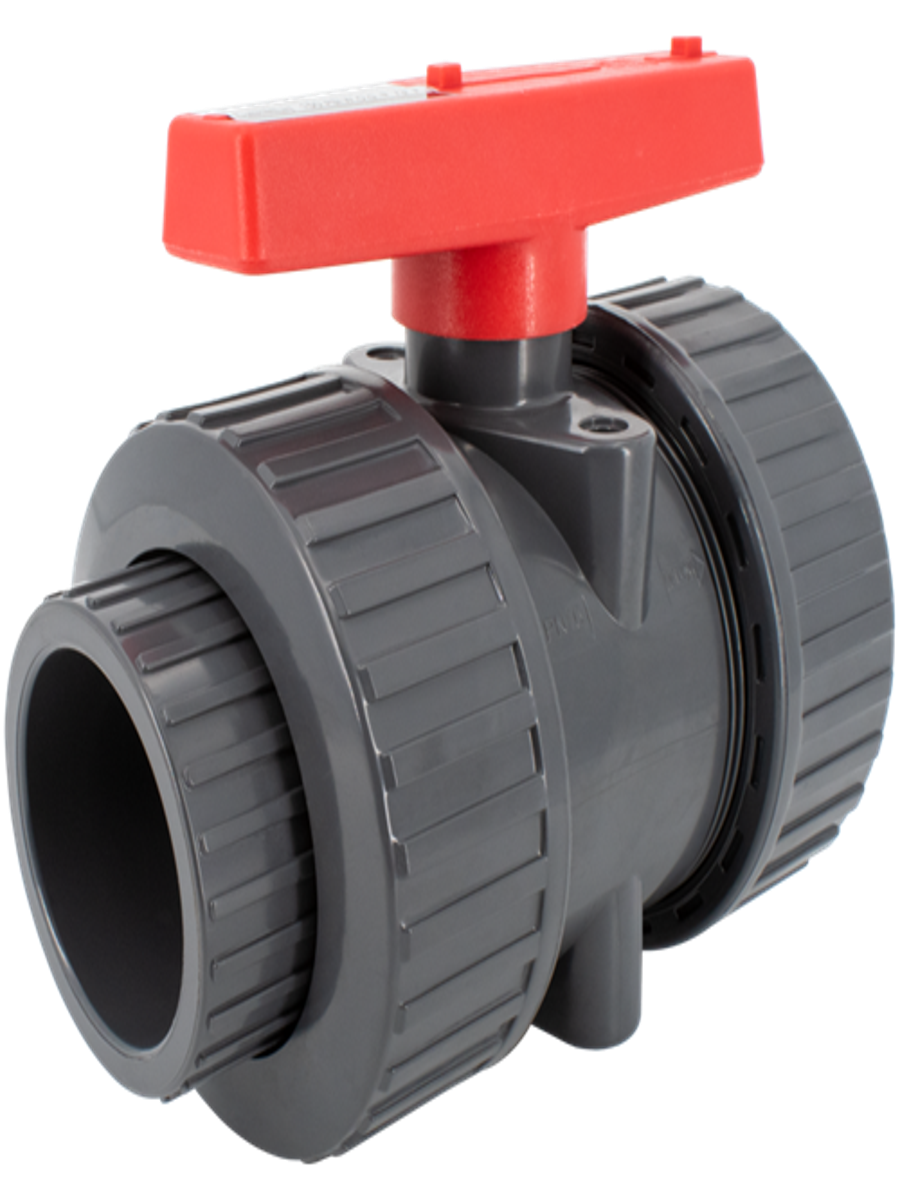

DESCRIPTIONLegend Valve True Union Ball Valve, S-603 Series, 4 in Nominal, Solvent Weld Connection, 150 psi CWP, Water Media, 13.07 in Inlet to Outlet Length, 7.01 in Top to Inlet Center, Handle Operator, Material Standard: ASTM D1784, PVC Body, PTFE Elastomer Seat, UPVC Stem, EPDM Seal, ABS Handle, UPVC Ball, 140 deg F, 13.07 in L
Ball Material : UPVC Body Material : PVCConnection Type : Solvent WeldDimensions : 13.07 in LHandle Material : ABSInlet to Outlet Length : 13.07 inMaterial Standard : ASTM D1784Media : WaterNominal Size : 4 inOperator Type : HandlePressure Rating : 150 psi CWPSeal Material : EPDMSeat Material : PTFE ElastomerSeries : S-603 SeriesStem Material : UPVCTemperature Rating : 140 deg FTop to Inlet Center : 7.01 in
DESCRIPTIONLegend Valve True Union Ball Valve, S-603 Series, 4 in Nominal, Solvent Weld Connection, 150 psi CWP, Water Media, 13.07 in Inlet to Outlet Length, 7.01 in Top to Inlet Center, Handle Operator, Material Standard: ASTM D1784, PVC Body, PTFE Elastomer Seat, UPVC Stem, EPDM Seal, ABS Handle, UPVC Ball, 140 deg F, 13.07 in L
Ball Material : UPVC Body Material : PVCConnection Type : Solvent WeldDimensions : 13.07 in LHandle Material : ABSInlet to Outlet Length : 13.07 inMaterial Standard : ASTM D1784Media : WaterNominal Size : 4 inOperator Type : HandlePressure Rating : 150 psi CWPSeal Material : EPDMSeat Material : PTFE ElastomerSeries : S-603 SeriesStem Material : UPVCTemperature Rating : 140 deg FTop to Inlet Center : 7.01 in
